Lima Locomotive & Machine Co.

Photo Credit:
David Thomas collection

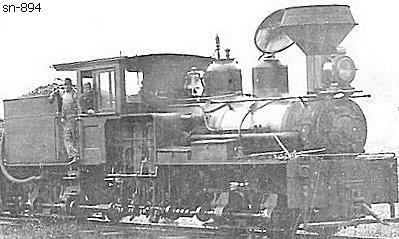

Shop Number 894 - Built for: Henry Spies
{836th Lima Built Shay}
Built:
7-29-1904
Class:
B
25-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28.75"
Gauge:
36"
Boiler:
[Style - Dia.Dia.]

ST. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
14,766 Lbs.
Factor of
Adhesion:

4.22
Maximum
Safe Speed:

11.1
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,100 Gallons
Empty Weight:
As built
49,900
Owners:
Henry Spies, Pickens & Hacker RY #3, Pickens, WV
Mayton Lbr. Co., Pickens & Hacker RY #3, Pickens, WV
The Sun Lbr. Co. #3, Suncrest, WV
Disposition: (by 11-19-1925) Scrapped/Dismantled
Additional Notes:
