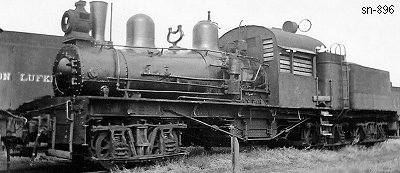

Lima Locomotive & Machine Co.

Photo Credit:
by W. H. B. Jones, from Thomas Lawson Jr. collection
Shop Number 896 - Built for: H. C. McDaniels Lbr. Co.
{838th Lima Built Shay}
Built:
7-29-1904
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.70
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood & Coal
 Fuel Capacity:
2.5 Cords / 5 Tons
 Water Capacity:
3,000 Gallons
Empty Weight:
As built
110,000
Owners:
H. C. McDaniels Lbr. Co. #4, El Dorado, AR
Edgar Lbr. Co., Cornie Valley RR #4, Wesson, AR
(7-25-1912) Southern Iron & Equip. Co. (D) #861, Atlanta, GA *
(8-6-1912) Fourche River Lbr. Co., Fourche River Valley & Indian Territory RY #4, Bigelow, AR
(4-14-1922) For sale
(7-5-1923) Trinity County Lbr. Co. #4, Groveton, TX
(11-22-1930) For sale
Disposition: Scrapped
Additional Notes: * Owned by Dealer
