Lima Locomotive & Machine Co.

Photo Credit:

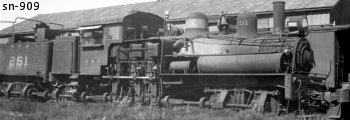

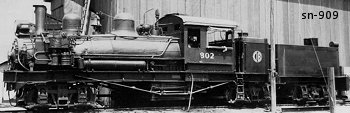

Left: by unknown - Right: by Ron V. Nixon (4-1932)
Shop Number 909 - Built for: California Northwestern RY Co.
{851st Lima Built Shay}
Built:
9-21-1904
Class:
C
75-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.056
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
35,026 Lbs.
Factor of
Adhesion:

4.95
Maximum
Safe Speed:

20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
138,070
Owners:
California Northwestern RY Co. #32, San Francisco, CA; For:
Northwestern Redwood Co., California & Northwestern RY #1, Willits, CA
Northwestern Pacific RR Co. #32 later 251, Tiburon, CA
(5-1-1922) Leased to: Hutchinson Lbr. Co., Feather Falls, CA
Leased to: Portland, Eugene & Eastern RR #251, Eugene, OR
(9-26-1925) For sale: Repaired to make more salable at Tiburon, CA
(4-24-1935) Mason-Walsh-Atkinson-Kier Co. #251 later #802, Grand Coulee Dam, WA
(03-14-1938) Consolidated Builders, Inc. #802, Grand Coulee Dam, WA
(01-12-1945) M. Bloch & Co., Mason City, WA for scrap
Disposition: (1-1945) Scrapped
Additional Notes:
