Lima Locomotive & Machine Co.

Photo Credit:
John B. Allen collection

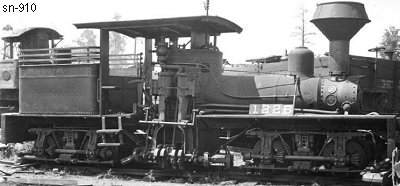

Shop Number 910 - Built for: Lynches River Tramway Co.
{852nd Lima Built Shay}
Built:
7-20-1904
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot- 44"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
10,013 Lbs.
 Factor of
Adhesion:
4.23
Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
800 Gallons
Empty Weight:
As built
36,000
Owners:
Lynches River Tramway Co., Jefferson, SC
Biscoe Foundry & Machine Co.(D), Biscoe, NC
[40"] Lake County Mfg. Co., Eustis, FL
Southern Iron & Equip. Co. (D) #1226, Atlanta, GA
(11-7-1919) [36"] J. M. Logan Lbr. Co. #2, Prattville, AL
(6-1-1925) Levy County Lbr. Co., Lennon, FL
Disposition: Scrapped
Additional Notes:
