Lima Locomotive & Machine Co.

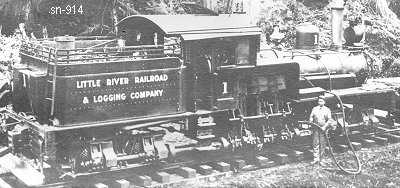

Photo Credit:
Jack Holst collection from Jim Gertz
Shop Number 914 - Built for: Pat McCoy RY
{856th Lima Built Shay}
Built:
9-30-1904
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.74
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
75,700
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Pat McCoy, McCoy RY #1, Bow, WA
(1910) Little River RY & Log. Co. #1, Port Angeles, WA
(6-8-1920) Klement & Kennedy #1, Fortson, WA
Disposition: Scrapped
Additional Notes:
