Lima Locomotive & Machine Co.

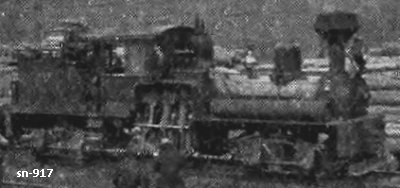

Photo Credit:
The Canada Lumberman. August 1905
Shop Number 917 - Built for: Otis Staples Lbr. Co.
{859th Lima Built Shay}
Built:
9-22-1904
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,157 Lbs.
 Factor of
Adhesion:
4.11
Maximum
Safe Speed:
10.9
Fuel Type:
Wood & Coal
 Fuel Capacity:
1.5 Cords / 1.75 Tons
 Water Capacity:
1,000 Gallons
Empty Weight:
As built
49,400
Owners:
Otis Staples Lbr. Co., St. Mary & Cherry Creek RY #1, Wycliff, BC, CAN
(10-13-1927) For sale
Disposition: (1930) Scrapped in Wycliff, BC, CAN
Additional Notes:
