Lima Locomotive & Machine Co.

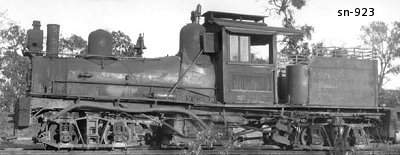

Photo Credit:
Denver Public Library collection
Shop Number 923 - Built for: W. H. Britton & Co.
{865th Lima Built Shay}
Built:
8-16-1904
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
4.97
 Maximum
Safe Speed:
16.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
61,300
Owners:
W. H. Britton & Co. #4, Florala, AL
Britton Lbr. Co. #4, Lakewood, FL
(3-27-1931) For sale
Disposition: Scrapped
Additional Notes:
Lima records also include the listings below which were intended for sn-953
??Owner: Birmingham Rail & Locomotive Co. #4, Birmingham, AL
??Owner: N. W. Sharp & Sons, Akron, AL
