Lima Locomotive & Machine Co.

Photo Credit:
W. R. Hicks collection

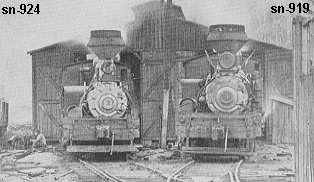

Shop Number 924 - Built for: Raine-Andrews Lbr. Co.
{866th Lima Built Shay}
Built:
9-12-1904
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Diam.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.74
Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,586 Gallons
Empty Weight:
As built
63,800
Owners:
Raine-Andrews Lbr. Co., Glady & Alpena RR #3, Evenwood, WV
(1-27-1923) Intermountain Coal & Lbr. Co., Putney, KY
Disposition: (4-1935) Scrapped
Additional Notes:
