Lima Locomotive & Machine Co.

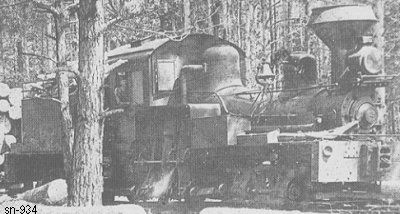

Photo Credit:
William F. Goodwin collection
Shop Number 934 - Built for: Vredenburgh Saw Mill Co.
{876th Lima Built Shay}
Built:
9-26-1904
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
5.25
 Maximum
Safe Speed:
16.3
Fuel Type:
Wood & Coal
 Fuel Capacity:
2 Cords / 3.75 Tons
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
60,100
Owners:
Vredenburgh Saw Mill Co. #2, Pine Hill, AL
(12-1911) Vredenburgh Saw Mill Co. #2, Vredenburgh, AL
(1916) Thomas T. Ivey & Co. #2, Kalem, AL
(1919) Nadawah Lbr. Co., Nadawah, AL
Disposition: (after1-1926) Scrapped
Additional Notes: (1-22-1926) out of service account of firebox and flues being bad
