Lima Locomotive & Machine Co.

Photo Credit:
Bill Gove collection

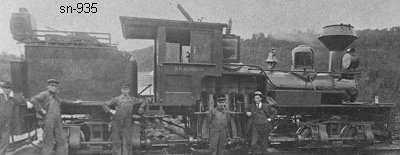

Shop Number 935 - Built for: Moose River Lbr. Co.
{877th Lima Built Shay}
Built:
9-24-1904
Class:
B
23-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,517 Lbs.
 Factor of
Adhesion:
4.04
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood & Coal
 Fuel Capacity:
1.25 Cords /1.25 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
45,700
Owners:
Moose River Lbr. Co. #1 "H. B. STEBBINS", Victory, VT
(1911) Johnson Lbr. Co., Gordon Pond RR #1 (2nd), Johnson, NH
(10-1-1916) Woodstock Lbr. Co., Beebe River RR #3 "PEGGY", Beebe River, NH
(1923) Park-Wood Lbr. Co., Port St. Joe, FL
Disposition: (after 1925) Scrapped
Additional Notes:
