Lima Locomotive & Machine Co.


Photo Credit:

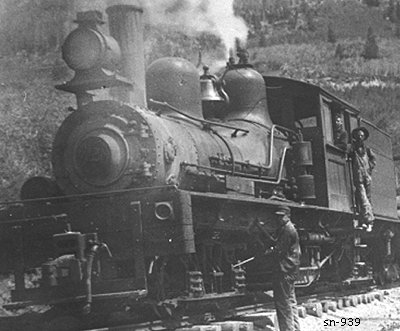

Left: Locomotive World Magazine

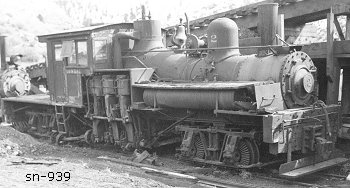

Right: Llotd Graham collection (4-12-1937)
Shop Number 939 - Built for: Uintah RY
{881st Lima Built Shay}
Built:
10-26-1904
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
36"
 Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.87
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,200 Gallons
Empty Weight:
As built
75,500
Owners:
Uintah RY Co., Uintah RY #2, Atchee, CO
Disposition: (between 1935-1938) Parted out and Scrapped
Additional Notes:
