Lima Locomotive & Machine Co.

Photo Credit:
Dr. John G. Baxter collection

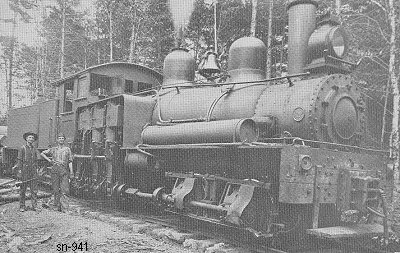

Shop Number 941 - Built for: Campbell Lbr. Co.
{883rd Lima Built Shay}
Built:
11-30-1904
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
33,564 Lbs.
Factor of
Adhesion:

4.29
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
112,800
Owners:
Campbell Lbr. Co., Marlinton & Camden RY #3, Campbelltown, WV
(11-14-1918) Spice Run Lbr. Co. #2, Spice Run, WV
(6-10-1925) For sale
(2-19-1926) Spring Creek Lbr. Co., Spring Creek, WV
Disposition: (c1934) Scrapped
Additional Notes:
