Lima Locomotive & Machine Co.

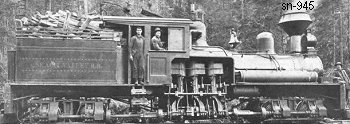

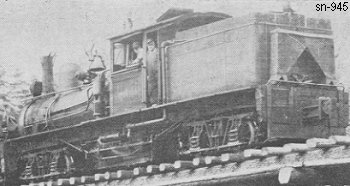

Photo Credit:
Left: by Darius Kinsey
Right: by unknown
Shop Number 945 - Built for: English Lbr. Co.
{887th Lima Built Shay}
Built:
1-5-1905
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,306 Lbs.
Factor of
Adhesion:

5.14
Maximum
Safe Speed:

17.2
Fuel Type:
Wood & Coal
Fuel Capacity:
2 Cords / 3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
83,800
Owners:
W. D. Hofius & Co. (D), Seattle, WA
English Lbr. Co., Skagit Valley RR #4, Fir, WA
(9-7-1924) Maine Log.Co. #4, Belfair, WA
Disposition: Scrapped
Additional Notes:
