Lima Locomotive & Machine Co.

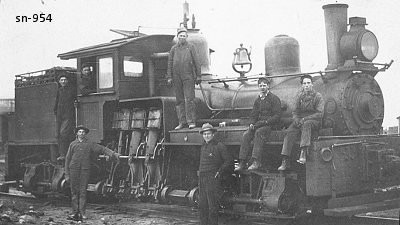

Photo Credit:
Carter Family collection
Shop Number 954 - Built for: Clift Wise
{896th Lima Built Shay}
Built:
11-14-1904
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,072 Lbs.
Factor of
Adhesion:

5.19
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
58,900
Owners:
Clift Wise #5, East Lima, OH
Connor Lbr. & Land Co. #5, Laona, WI
(7-24-1925) John Schroeder Lbr. Co. #1, Ashland, WI
Leased to: Bissell Lbr. Co., Tripoli, WI
Disposition: Scrapped
Additional Notes: Connor Lbr. & Land Co. owned the Laona and Northern RY Co., which operated as a common carrier, however the Shays were not rostered with the RY.
