Lima Locomotive & Machine Co.

Photo Credit:
David Thomas collection

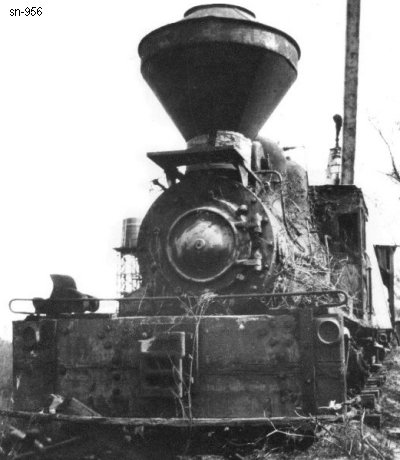

Shop Number 956 - Built for: Warren & Corsicana Pacific RY
{898th Lima Built Shay}
Built:
10-29-1904
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
21,948 Lbs.
Factor of
Adhesion:

3.53
Maximum
Safe Speed:

13.2
Fuel Type:
Wood
Fuel Capacity:
1.75 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
62,700
Owners:
George M. Dilley & Son (D), Palestine, TX
Warren & Corsicana Pacific RY Co, Warren & Corsicana Pacific RY #10, Warren, TX
Tyler County Lbr. Co. #10, Warren, TX
(1-31-1919) Bivins Lbr. Co. Ashland, TX
(3-26-1920) Bivins Lbr. Co. James, TX
(9-6-1921) Clark & Boice Lbr. Co., Jefferson & Northwestern RY Co. #104, Jefferson, TX
(by 9-1-1928) Leased to: Ware & Driskell , Sarber, TX
(7-31-1929) Returned to: Clark & Boice Lbr. Co. in bad shape
Disposition: (after 11-12-1932) Scrapped
Additional Notes:
