Lima Locomotive & Machine Co.

Photo Credit:
Bobby Garraway collection

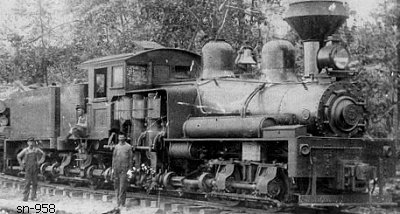

Shop Number 958 - Built for: Butterfield Lbr. Co.
{900th Lima Built Shay}
Built:
3-10-1905
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.75
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood & Coal
 Fuel Capacity:
2.5 Cords / 5 Tons
 Water Capacity:
3,000 Gallons
Empty Weight:
As built
110,800
Owners:
Butterfield Lbr. Co., Natchez, Columbia & Mobile RR #5, Norfield, MS
(1915) Denkmann Lbr. Co. #5, Norfield, MS
(c1933) Pearl River Valley Lbr. Co., Canton, MS
Disposition: (12-1937) Scrapped
Additional Notes: Canton & Carthage RR was not owned by Pearl River Valley Lbr. Co.
