Lima Locomotive & Machine Co.
Photo Credit:

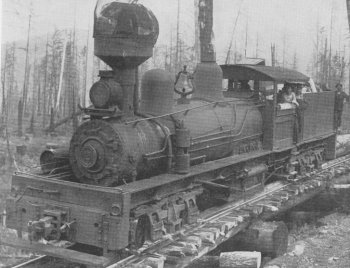

Left: by Darius Kinsey

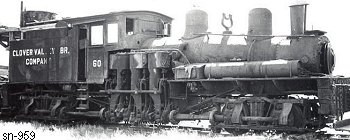

Right: Marc Reusser collection
Shop Number 959 - Built for: White Oak Cannel Coal Co.
{901st Lima Built Shay}
Built:
11-10-1904
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.17
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal
 Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
99,380
Owners:
White Oak Cannel Coal Co., Caney & West Liberty RR #3 "VIRGINIA", Caney, KY
Caney, Piedmont & Morehead RY Co., Caney, Piedmont & Morehead RR #3 (1st), Caney, KY
Lima Locomotive Works (B), Lima Ohio
(4-22-1907) Nevada RR Co., Nevada RR #2, Wadsworth, NV
(1909) Chinn-Knight Co. #2, Maple Falls, WA
(by 4-1911) A. W. Knight & Co. #2, Maple Falls, WA
Western Pine Lbr. Co. #3, Klickitat, WA
Zimmerman, Wells & Brown Co., (D), Portland, OR *
(4-24-1920) Clover Valley Lbr. Co. #3 later #60, Loyalton, CA
Disposition: Scrapped
Additional Notes: Converted to oil burner
* Owned by Dealer
