Lima Locomotive & Machine Co.

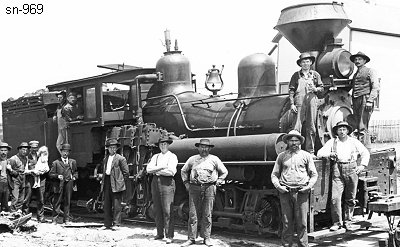

Photo Credit:
"Wisconsin Shortline and Logging Steam Locomotives," by Thomas E. Burg
Shop Number 969 - Built for: Hackley-Phelps-Bonnell Co.
{911th Lima Built Shay}
Built:
3-3-1905
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.88
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
66,160
Owners:
Hackley-Phelps-Bonnell Co. #2, Conover, WI
(4-7-1921) Leased to: Wisconsin-Michigan Lbr. Co., State Line, WI
(9-6-1921) Hockley-Phelps-Bonnell Co. #2, Phelps, WI
(1-9-1929) C. M. Christiansen Co. #2, Phelps, WI
Disposition: Scrapped
Additional Notes:
