Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection

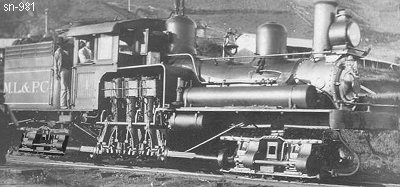

Shop Number 981 - Built for: Mexican Light & Power Co.
{923rd Lima Built Shay}
Built:
1-6-1905
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
5.13
Maximum
Safe Speed:
16.3
Fuel Type:
Wood & Coal
 Fuel Capacity:
1.5 Cords / 1.75 Tons
 Water Capacity:
1,200 Gallons
Empty Weight:
As built
61,600
Owners:
Mexican Light & Power Co., F. C. Beristain-Necaxa #4, Beristain, HID, Mexico
Stored at Nexaca, HID,MX
Disposition: (by 1968) Scrapped
Additional Notes:
