Lima Locomotive & Machine Co.

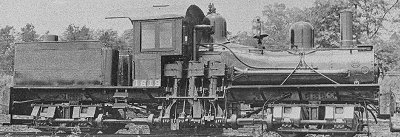

Photo Credit:
George R. Kadelak collection (1922)
Shop Number 985 - Built for: Emporia Lbr. Co.
{927th Lima Built Shay}
Built:
6-17-1905
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
23,238 Lbs.
 Factor of
Adhesion:
4.06
 Maximum
Safe Speed:
15.1
Fuel Type:
Wood
 Fuel Capacity:
2 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
76,300
Owners:
Emporia Lbr. Co. #5, Emporia, TX
Attoyac River Lbr. Co., Press, TX
(6-20-1919) Mayotown Lbr. Co. #5, Mayotown, TX
Southern Iron & Equip. Co. (D) #1619, Atlanta, GA
(12-1-1922) Ozark Southern RY Co., Ozark Southern RY #5, Ava, MO
Disposition: Scrapped
Additional Notes:
