Lima Locomotive & Machine Co.

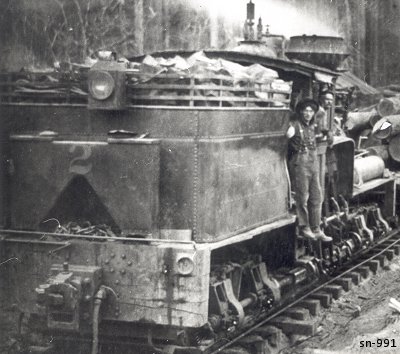

Photo Credit:
Marc Reusser collection
Shop Number 991 - Built for: Columbia Tbr. Co.
{933rd Lima Built Shay}
Built:
3-24-1905
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.86
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.75 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,500
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Columbia Tbr. Co., Goble, Nehalem & Pacific RY #2 (2nd) "WILBUR", Goble, OR
(c1912) Converted to oil burner
Clark & Wilson Lbr. Co. #2, Scappoose, OR
(by 12-29-1927) Clark & Wilson Lbr. Co. #2, Wilark, OR
Disposition: Scrapped
Additional Notes: (12-1927) Trucks ordered for 991 placed under 1830 at Wilark, OR
