Lima Locomotive & Machine Co.

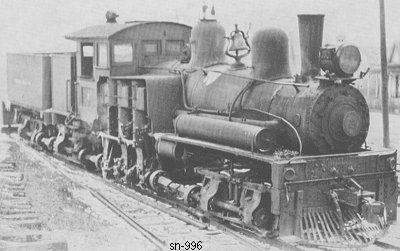

Photo Credit:
by John B. Allen
Shop Number 996 - Built for: Grayson Lbr. Co.
{938th Lima Built Shay}
Built:
4-25-1905
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
29,835 Lbs.
Factor of
Adhesion:

4.70
Maximum
Safe Speed:

19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
109,800
Owners:
Grayson Lbr. Co., Virginia Southern RR #2, Marion, VA
(c1911) Marion & Rye Valley RR, Marion & Rye Valley RR #2, Marion, VA
(9-15-1933) Marion Brick Co. #2, Marion, VA
Disposition: Scrapped
Additional Notes:
