Lima Locomotive & Machine Co.

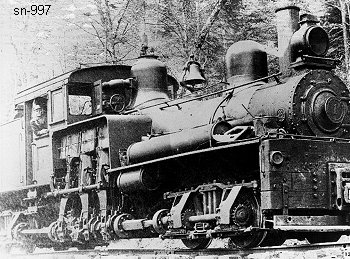

Photo Credit:
Both: Kyle Neighbors collection
Shop Number 997 - Built for: Warn Lbr. Co.
{939th Lima Built Shay}
Built:
5-3-1905
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
21,481 Lbs.
Factor of
Adhesion:

5.77
Maximum
Safe Speed:

19.4
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
99,900
Owners:
Warn Lbr. Co., Cranberry RR #1, Warntown,WV
(4-4-1914) The Warn Lbr. Corp. #1, Raywood, WV
(10-21-1924) Leased to: Forest Lbr. Co. #1, Raywood, WV
(1-1-1926) Forest Lbr. Co. #1, Raywood, WV
Disposition: Scrapped
Additional Notes:
