Lima Locomotive & Machine Co.

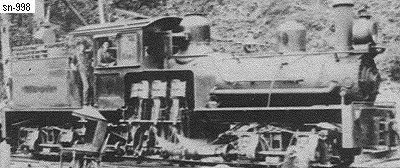

Photo Credit:
D. D. Brown collection at West Virginia University Library collection
Shop Number 998 - Built for: Brown & Hill
{940th Lima Built Shay}
Built:
5-11-1905
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
5.16
 Maximum
Safe Speed:
16.3
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
62,100
Owners:
Brown & Hill, #1, Montes, WV
(12-23-1910) Repaired at Lima Locomotive & Machine Works (B), Lima, OH
Cobbs & Mitchell #1, Cadillac, MI
(7-27-1926) Grand Rapids Gravel Co. #1, Grand Rapids, MI
Disposition: Scrapped
Additional Notes:
